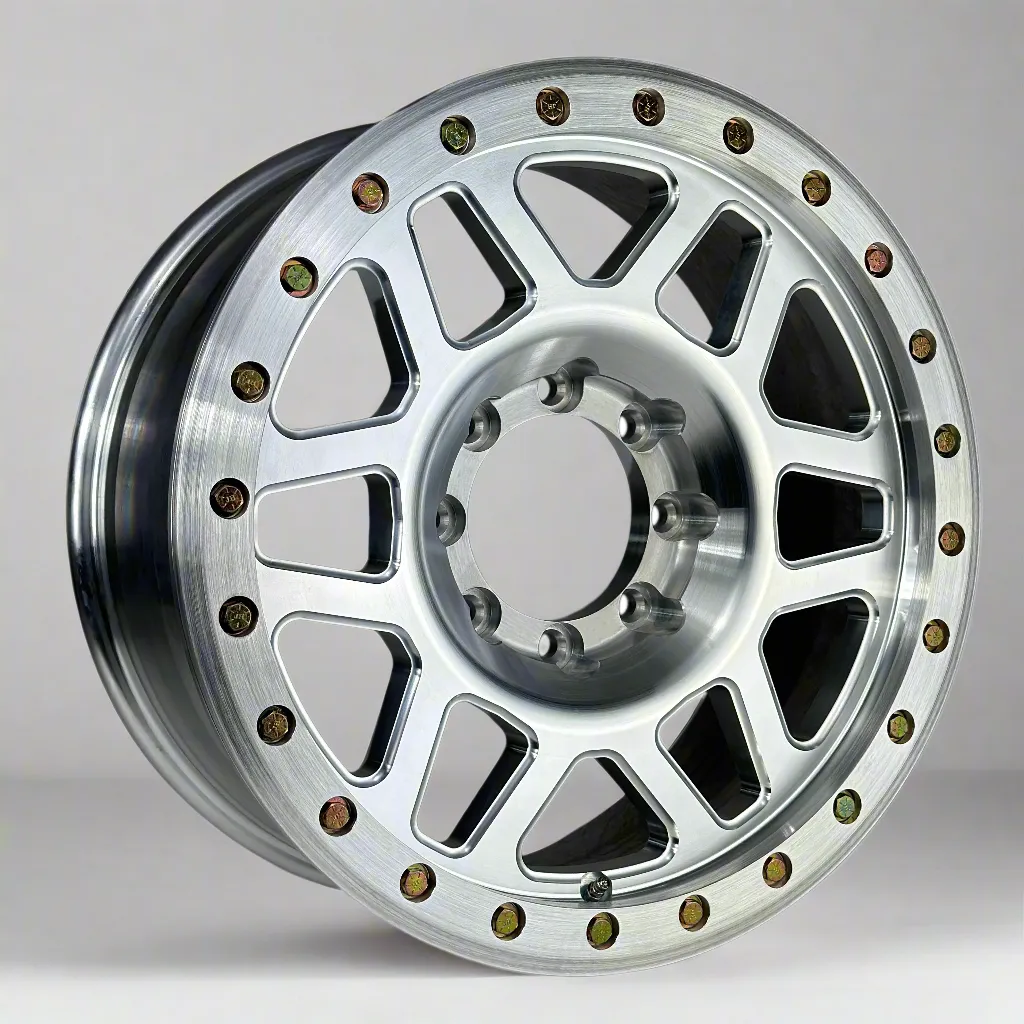

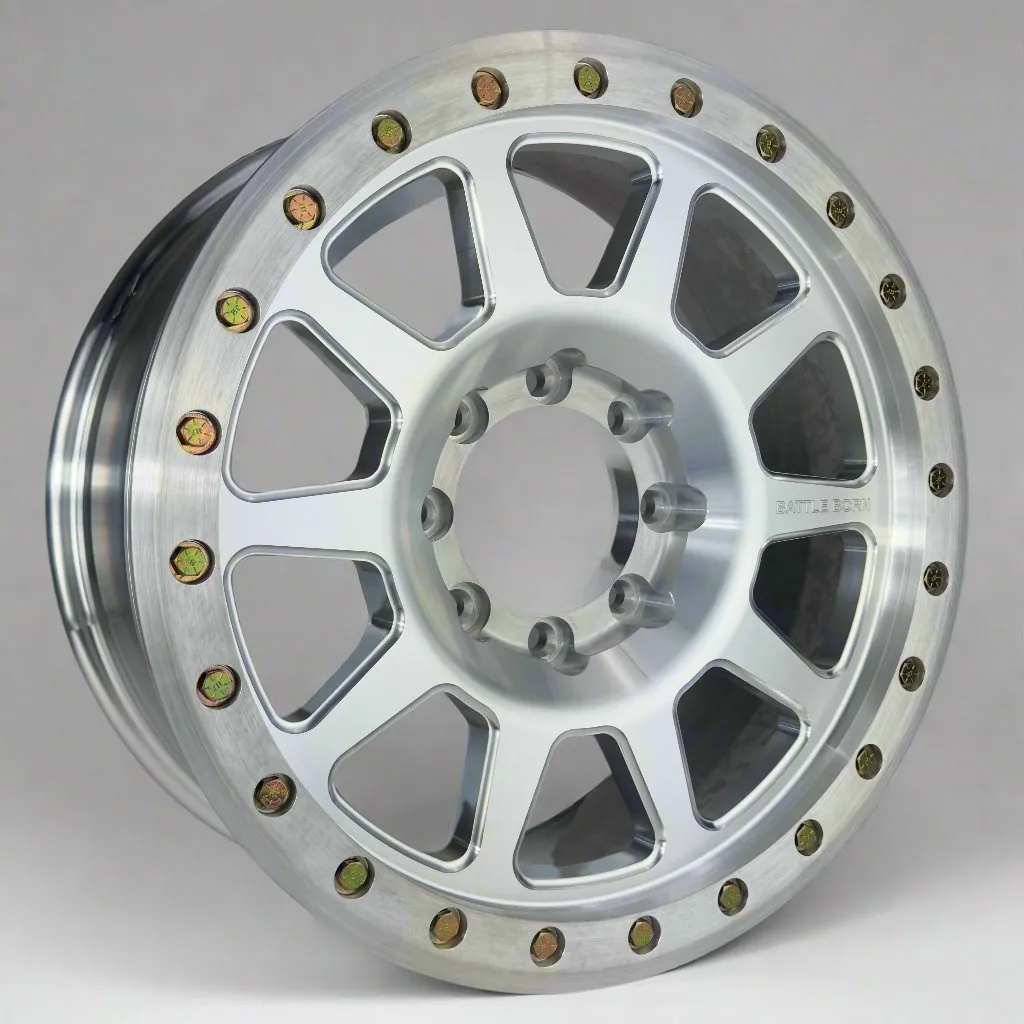

The Sierra Forged Crawl Spec was specifically designed for Portal and Custom Axle applications. However, it will still fit nice on your HD truck. This wheel is USA MADE Forged Monoblock construction. All machining work is done in house on our state of the art CNC equipment. The Sierra Forged Crawl Spec is currently only offered in a 20x8.5 TRUE WIDTH Beadlock.
By having this higher offset wheel, your steering scrub radius will result in better performance and longevity of components. Please email or call with questions regarding backspace and bolt patterns.
The beadlock rings are a Forged 6061-T6 construction for the ultimate combination of strength and lightweight. The beadlock hardware is made up of (24) zinc yellow-chromate plated hex head screws, in Grade 8 steel, 3/8"-16 thread size, and 1-1/4" long. We’ve taken the extra time to drill and tap (48) redundant holes in the lip of the wheel for long term use. The beadlock rings are counterbored to provide the best protection for your bolts.
Note: NOT compatible with TPMS
HoldFAST: Oversized Safety Hump on the Inner Bead for Added Tire Retention.
Custom options and fitments available. Please call or email.
This wheel is offered in a standard Machined Raw Finish. This allows you to run the wheel as is, polished, or custom coating. We will offer finishes if requested for additional cost.
Please allow 6-8 week lead-time.
Call to order
Reach out to us with any questions
775-400-4048 / [email protected] / @battlebornwheels
- USA Made
- Forged Monoblock Construction
- Currently available in 20x8.5
- Forged 6061-T6 Heat Treated Rings
- HoldFAST Oversized Inner Safety Bead Seat
- Extra Large Lug Nut Socket Clearance
- 24 Grade 8 Steel 3/8"-16 Thread, 1-1/4" Length Hardware
- 48 Redundant Double Drilled and Tapped Beadlock Screw Holes
- Counterbored Beadlock Screw Holes in Ring
- Crafted in Nevada
